    Fix ABS Plastic Cracks

    Would this work on cracked bike bits???

    Last edited by wildbears; 05-08-2020, 08:01 AM.

    Used this technique to plug a nail hole in a vertical ABS waste pipe.

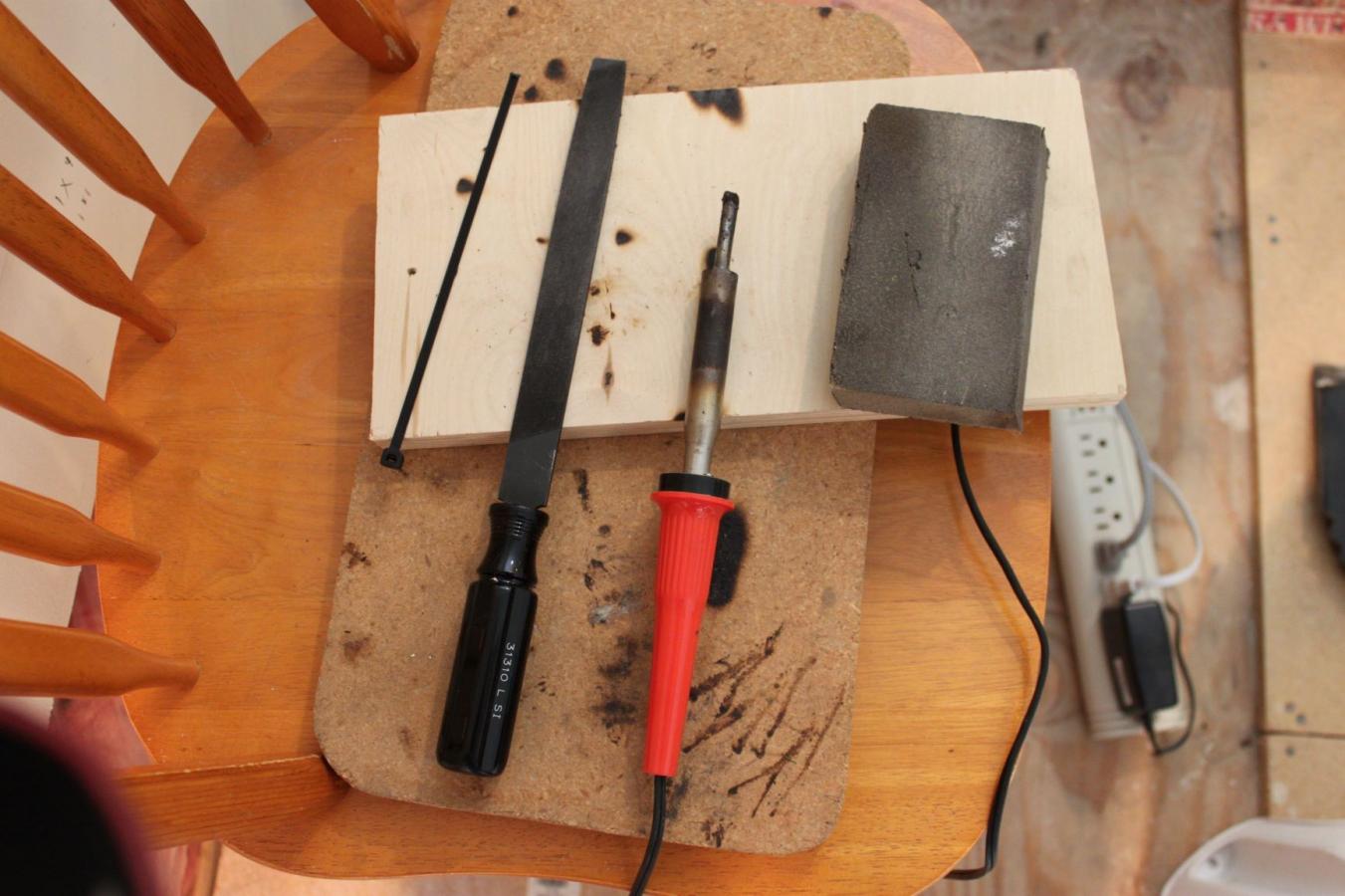

    Pics show steps and tools including an ABS zip tie.

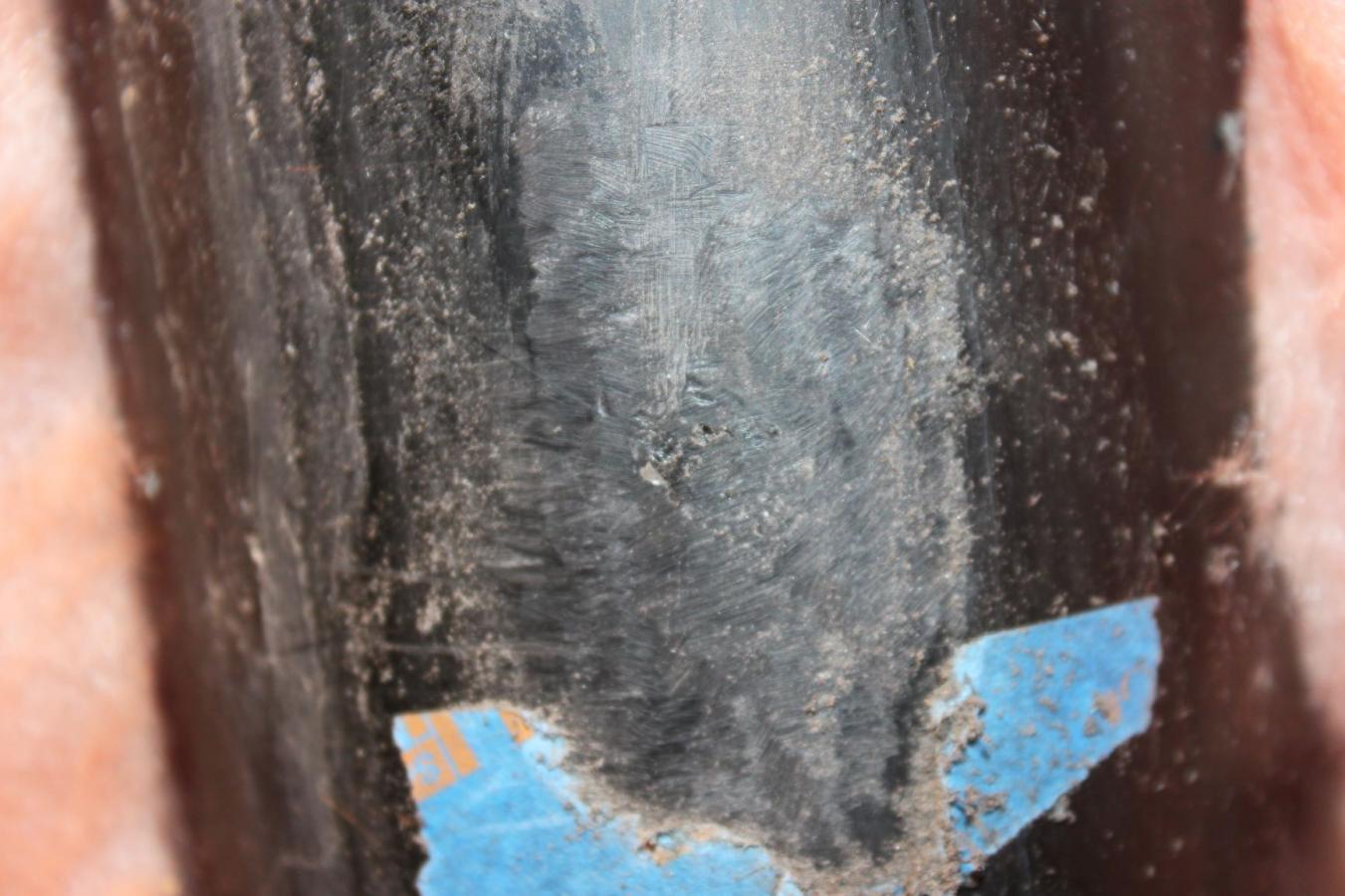

    Third pic shows nail hole dished out with soldering iron.

    Fourth pic shows added abs from zip tie.

    Last pic shows sanded finish.

    Click image for larger version  Name:	IMG_8118 small.JPG Views:	2 Size:	120.9 KB ID:	20658

    Click image for larger version  Name:	IMG_8114 small.JPG Views:	1 Size:	136.9 KB ID:	20659

    Click image for larger version  Name:	IMG_8115 small.JPG Views:	1 Size:	152.9 KB ID:	20660

    Click image for larger version  Name:	IMG_8116 small.JPG Views:	1 Size:	126.6 KB ID:	20661

    Click image for larger version  Name:	IMG_8117 small.JPG Views:	1 Size:	125.6 KB ID:	20662
    Last edited by wildbears; 05-28-2020, 06:23 AM.


      Actually, believe it or not, there were 7 nail holes.

      All now completely and permanently sealed.

      Previous owners had installed a built in desk.


        Easy as one,two,three


          Inside of tank "cover" got welded too.


            I was very surprised at how long the base material stays warm. Just used an OLD straight electric soldering iron. It's very comparable to "brazing" in U.S. parlance,vs say wire or Tig welding.


              Nice work.


                Black track bike Bobby. Got some cheap race bodywork off fleabay and painted it single stage black...... which makes sense from a,*TIDTR and repaint it standpoint. But had some base/clear leftover from the youngest's Ford Fucus and figured,what the hay. The bodywork didn't come with the tank cover. So now it's not only fixed but sporting BC/CC and all matched.... more or less, black.

                Will update this with another pic in a cpl weeks.

                *TIDTR ; throw it down the road
